This kit is to rebuild your sludge discharge pump and includes everything you need to swap out the 3 moving parts, stator cylinder, rotor and pins
This is the blue cylinder that the stainless steel auger turns inside
- Sludge Extraction Pump part 2 – Internal stator rubber (MN 45)
- Sludge Extraction Pump part 2 – Internal chromed rotor (MN 45)
- Connecting Shaft part 8
- Auger part 21
- Rubber Bellows part 14 x 2
- Clamps part 13&15 x 2
- Pin Part 18 x 2
If your sludge pump still runs water when the pump stops, this either has something stuck inside (in one of the chambers) or needs replacing
This is the same set for flanged and hoppered pumps
| Drawing Position | |
|---|---|
| Fits Machine | Clearly ™ G100U, Clearly ™ G100, Clearly ™ G160, Clearly ™ G200, Clearly ™ G50, Clearly ™ G250, DEP 95/350, DEP 160/600, DEP 215/800, MULTIDEP 315/1200 |
Sludge Extraction Pump part No 2 - Internal stator rubber (MN 45)
| Weight | 10 lbs |
|---|---|
| Dimensions | 15 × 12 × 12 in |
| Drawing Position |
Sludge Extraction Pump part No 3 - Rotor in chromed steel (MN 45)
| Weight | 10 lbs |
|---|---|
| Dimensions | 18 × 12 × 12 in |
| Drawing Position |
Sludge Extraction Pump part No 21 - Connecting shaft - main auger
| Weight | 4 lbs |
|---|---|
| Drawing Position |

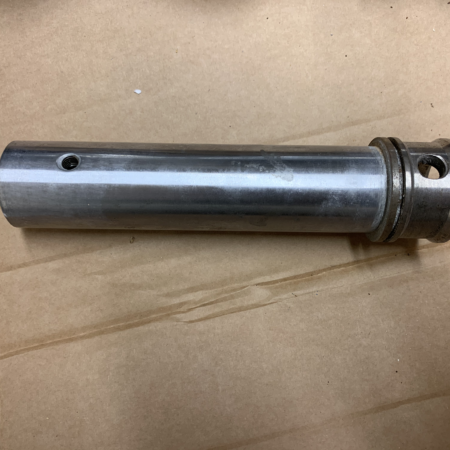

Sludge Extraction Pump part No 8- Connecting shaft
| Weight | 6 lbs |
|---|---|
| Drawing Position |
Sludge Extraction Pump part No 10 - Rope Seals (QTY 6)
| Weight | 4 lbs |
|---|---|
| Dimensions | 4 × 4 × 4 in |
| Drawing Position |
Sludge Extraction Pump part No 13 - Clamp for bellows
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 2 × 2 × 2 in |
| Drawing Position |
Sludge Extraction Pump part No 14 - clamp for bellows
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 2 × 2 × 2 in |
| Drawing Position |
Sludge Extraction Pump part No 15 - Bellows
| Weight | 1 lbs |
|---|---|
| Dimensions | 4 × 4 × 4 in |
| Drawing Position |
Sludge Extraction Pump part No 18 & 22 - Cylindrical Pin
| Weight | 1 lbs |
|---|---|
| Dimensions | 4 × 4 × 4 in |
| Drawing Position |
