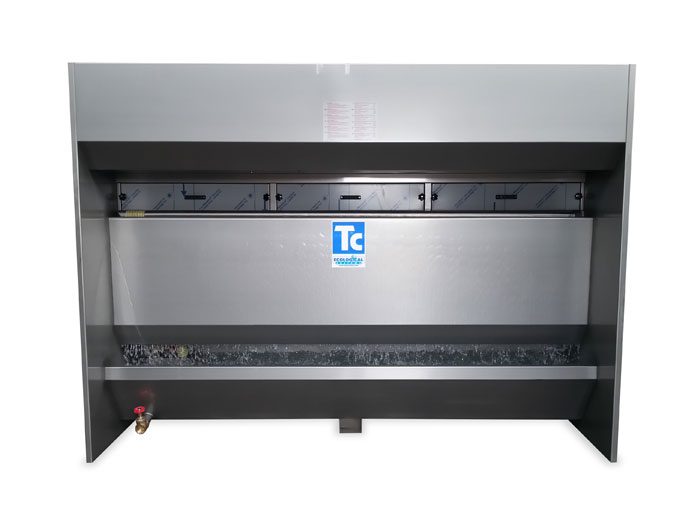

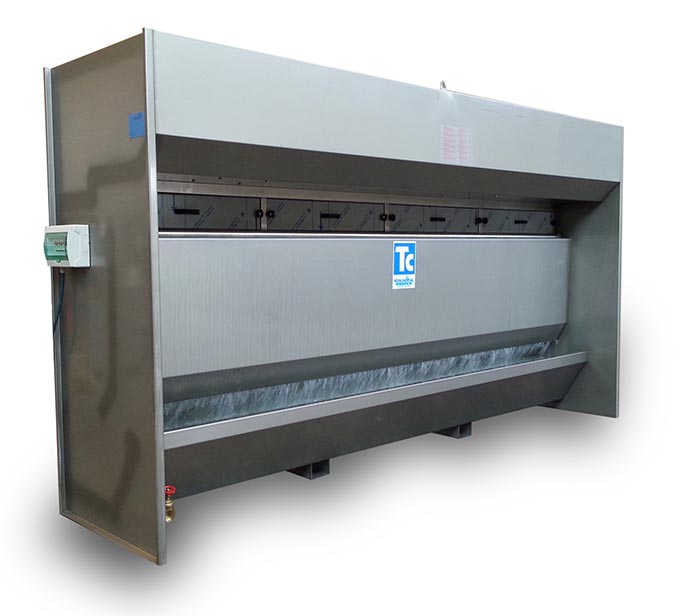

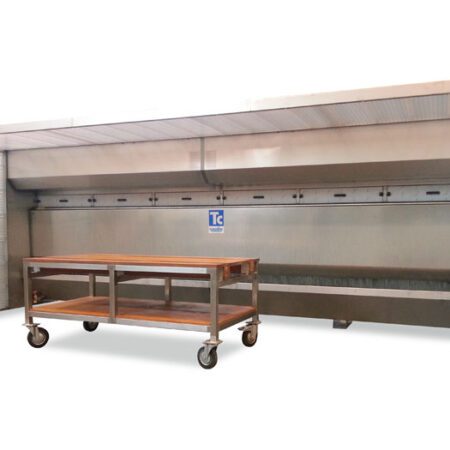

Turrini Claudio MB Waterwall Dust Control Cabinet

Stainless steel waterwall dust extraction cabinet from the Number One in the Industry.

The water wall dust extractor has a double dust suction system.

The ALL Stainless steel construction ensures long lifespan.

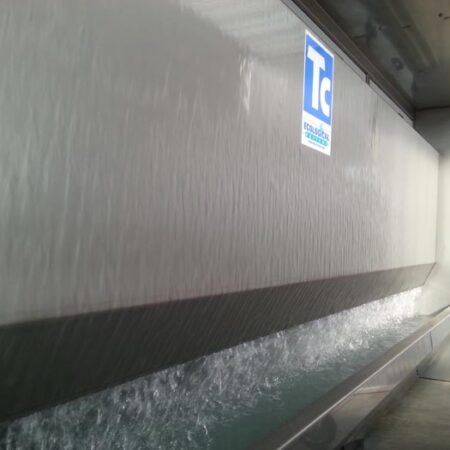

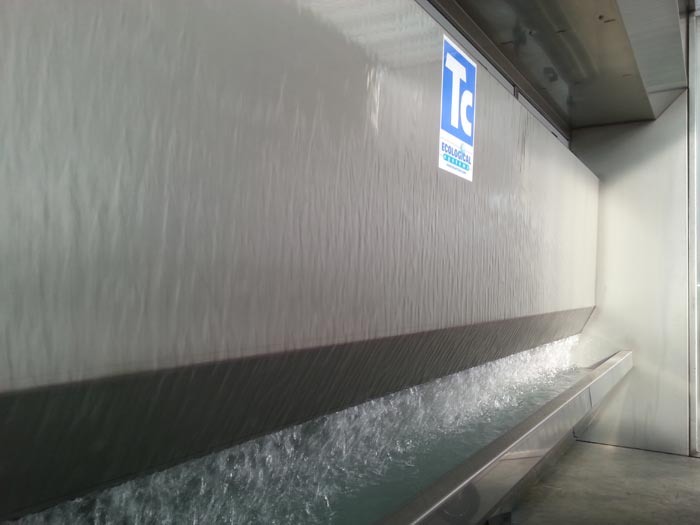

Outside there is a waterfall layer, generated to capture the heavier dust in suspension; inside there is another nozzle reduction system, needed for the complete dust removal of the suctioned air.

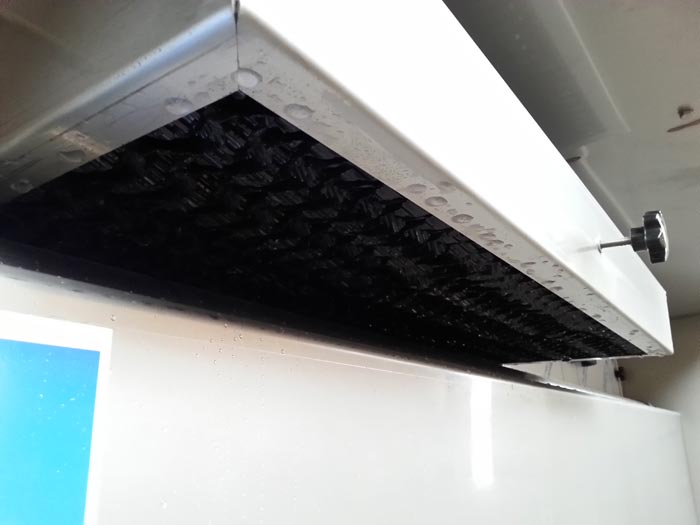

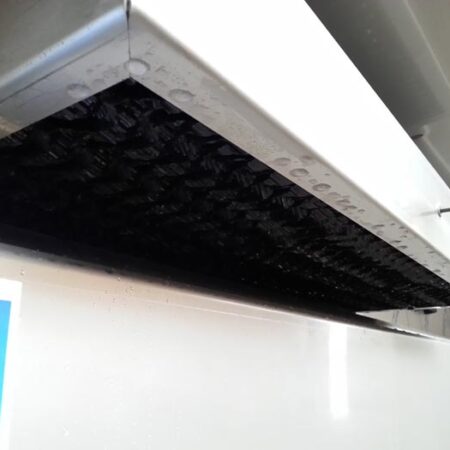

Finally there are droplet separator  elements to catch the remainder

Our suction cabin is designed for high performance and less maintenance. It is made of prime AISI 304 stainless steel.

The MB water wall follows the guidelines of HSE Health and Safety Executive and the exiting air should be ducted outside of the building to ensure total evacuation of dust.

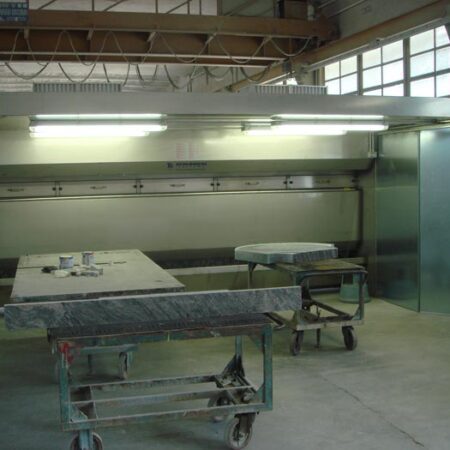

The operation and use of the MODULBOX MB system requires the operator to work in the front of the module, between the water layer and the linear vacuum opening.

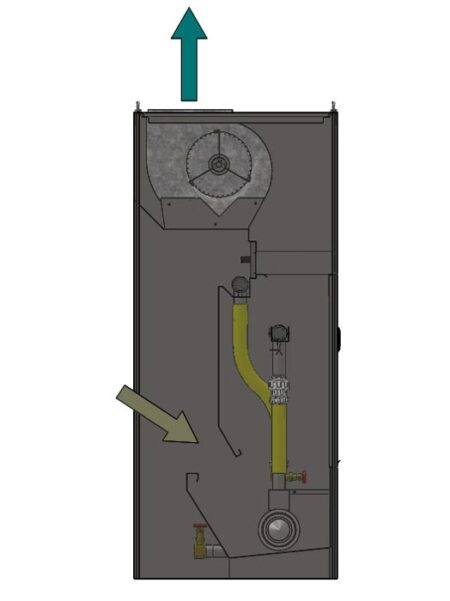

The dust produced is vacuumed by the fans through the opening located between the tank and the water layer. At first, part of the dust is reduced by the outer water layer while the rest is stopped by a water atomization system located inside the machine.

The module also has a droplet separator that isolates the water atomization system from the suction unit, not allowing the water or dust to be discharged in the air. The purified air comes out from the top of the machine and should be ducted to external air

The water flow on the outer layer can be regulated using the gate valves while the flow of the inner water atomization system, for dust reduction, remains constant.

It is also possible to access the machine for cleaning and routine maintenance of parts subject to saturation and inevitable wear.

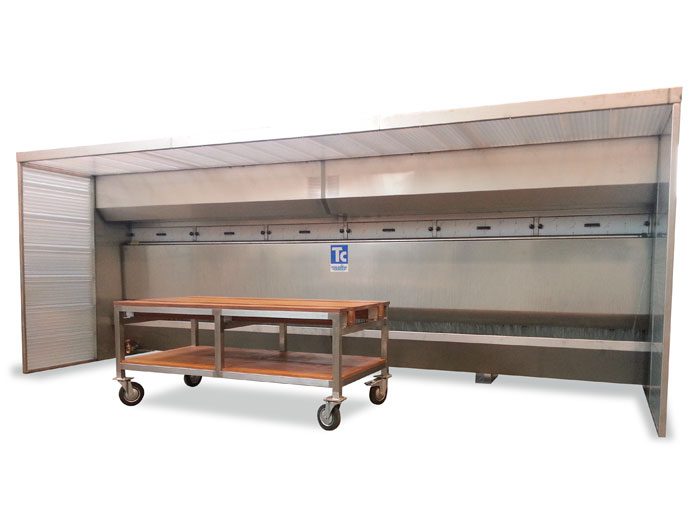

An additional fixed or mobile box of various dimensions with a frame in AISI 304 stainless steel and plexiglass panels can be applied to the front allowing the user to work even in areas subject to excessive turbulence.

Whenever the facility ceiling is not higher than six metres, our anti-turbulence disperser called the PLENUM is recommended.

It is powered by:

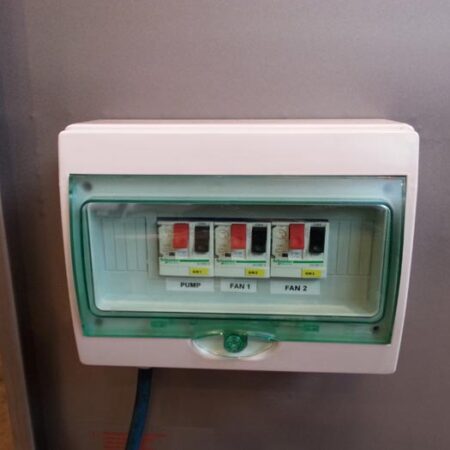

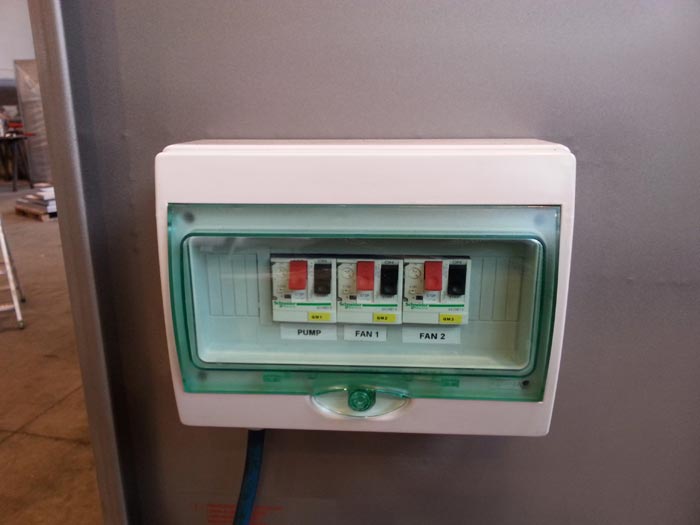

– A power panel that is up to EC standards and American UL-CSA

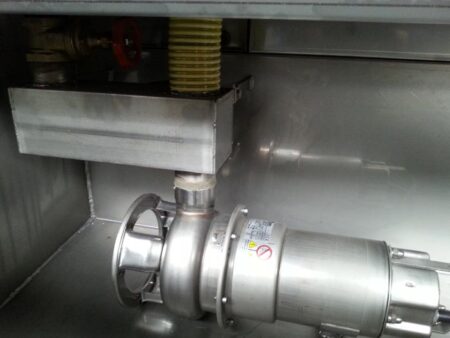

– Submersible pump with pump body and back side impeller in AISI 304 stainless steel
– Highly energy efficient motors (category IE3)

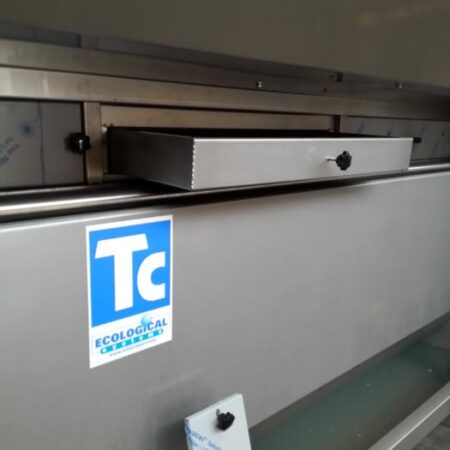

– Easily removable drawer droplet separators on the front
– The containment tank below it is tilted for easy cleaning of the accumulated sludge

1 Metre Plexiglass Box and “Plenum” air exit diffusion chambers OPTIONAL

PRICES INCLUDE DELIVERY*

*subject to confirmation of address
