H2Overwatch PH Monitoring & Additive Dosing system

Standalone PH monitoring and additive dosing system

Can be added to our Turrini, Clearly™ or any other system

Monitors PH of water and can add PH up or PH down to maintain safe and clear water.

Doses mixed flocculant and Coagulant

With the changes in engineered stone affecting water PH, we are finding this system is becoming standard for ours and other water recycling systems

Automatic refill and discharge circuits, to control topping up of your closed loop and safe discharge of clean recycled water rather than effluent overflow when you have too much water in the system, for example when you use wateriest that require only city water through the intensifier.

This system removes that problem and handles it safely and cleanly when combined with our cnc filters

• Standalone system
• Automatic PH monitoring and control system
• Integrated control panel
• Filter protection for probe
• FIlter & probe bowls
• Calibration kit

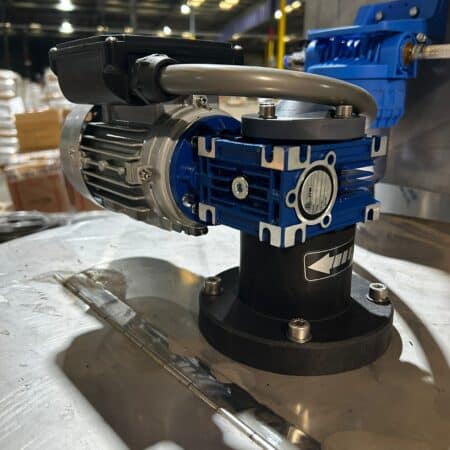

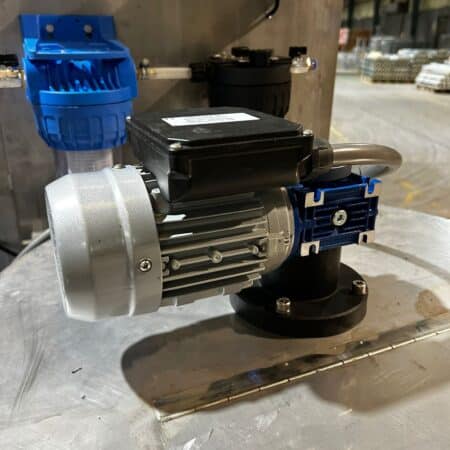

• 300L Flocculant tank with Automatic Mixer
• Adjustable flocculant pump to dose the mixed liquid
• Peristaltic coagulant pump
• Automatic refill circuit
• Automatic discharge circuit
• Inlet connections included (¼’)
• ¼” injection valve included
• 208-230v single phase, 13 amp

System is powered by 208-230v single phase supply (connected by your electrician)

Setup is simple

1. Connect the panel to power
2. Connect normally open contacts to your existing pit pump circuit
3. Connect the manifold into your dirty water indoors (from your pit pump)
4. Connect recycled water feed to the PH meter
5. Add chemicals

Setup by us is also available but electrical connections and plumbing will need to be made by your contractors.
